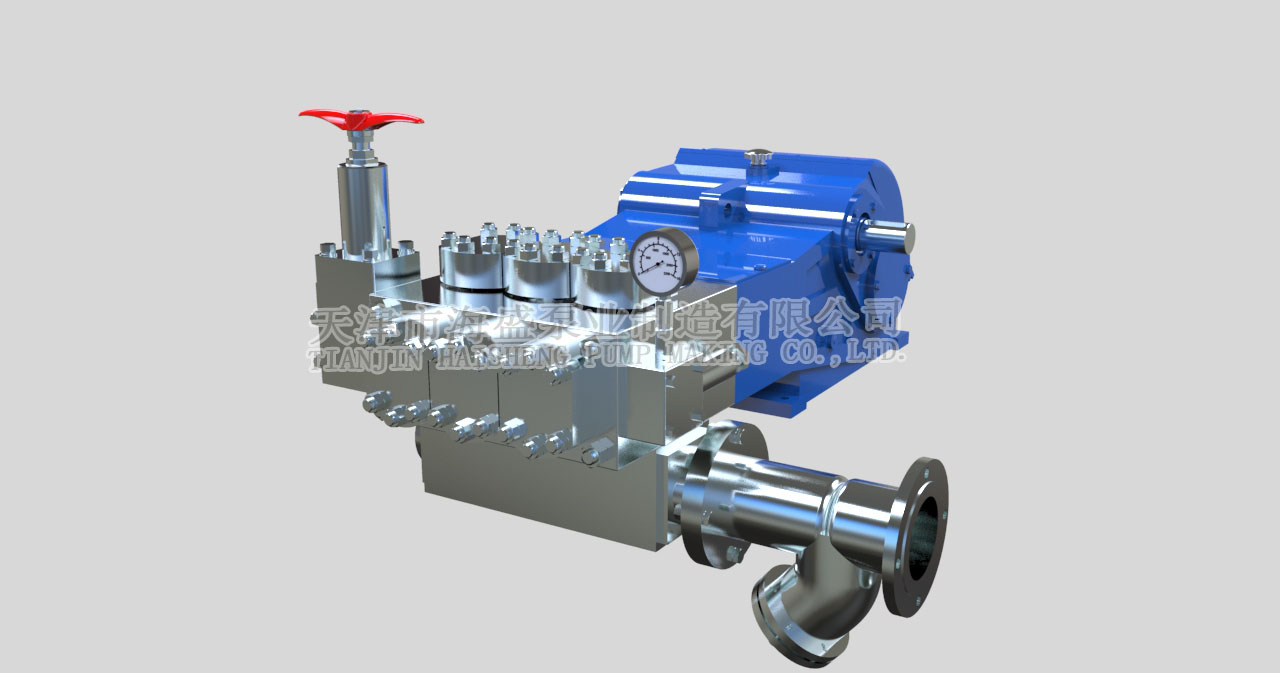

Type HSK200

        The pump is equipped with in-built chevron gear deceleration device. It has the properties of high transmission efficiency, low noises, stable operation, small size and compact construction. During the running, high-speed shaft can automatically adjust in horizontal direction, which makes it has balanced and reliable transmission, low friction coefficient, high lubrication, low temperature rising at power end, long-time continuous operation, etc. For fluid end, according to different parameter requirements, different kind of packing box can be used. It is unnecessary to dissemble pump head when changing plunger or filling material to make sealed. It is very convenient and save time. The max.crankshaft thrust force is 72KN.

                                                                                                                                            Technical Data

                                      泵重  Pump Weight :840kg    進(jìn)口 Inlet :5”     出口 Outlet :G2”
